Bluetooth low energy, Multi-standard, Proprietary 2.4 GHz, Thread, Zigbee
Wireless MCU
Flash memory (704k Byte)
Rating Catalog
Operating temperature range (105 °C)
Protocols: Bluetooth 5.2 Low Energy, Matter, Thread, Zigbee 3.0

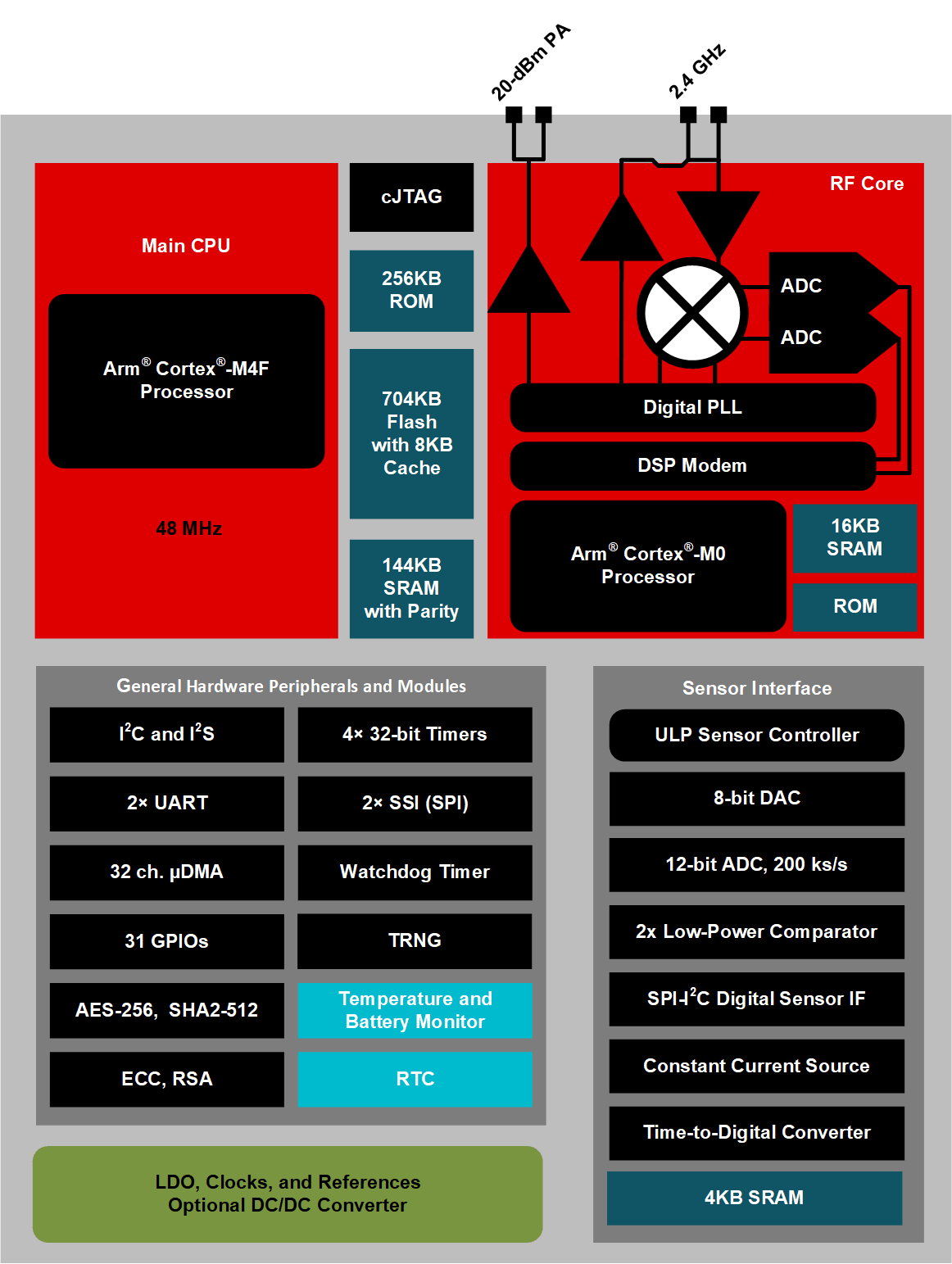

Wireless microcontroller
· Powerful 48-MHz Arm® Cortex®-M4F processor
· 704KB flash program memory
· 256KB of ROM for protocols and library functions
· 8KB of cache SRAM
· 144KB of ultra-low leakage SRAM with parity for high-reliability operation
· Dynamic multiprotocol manager (DMM) driver
· Programmable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK, Bluetooth® 5.2 Low Energy, IEEE 802.15.4 PHY and MAC
· Supports over-the-air upgrade (OTA)
Ultra-low power sensor controller
· Autonomous MCU with 4KB of SRAM
· Sample, store, and process sensor data
· Fast wake-up for low-power operation
· Software defined peripherals; capacitive touch, flow meter, LCD
Low power consumption
· MCU consumption:
§ 3.10 mA active mode, CoreMark
§ 65 µA/MHz running CoreMark
§ 0.9 µA standby mode, RTC, 144KB RAM
§ 0.1 µA shutdown mode, wake-up on pin
· Ultra low-power sensor controller consumption:
§ 29.2 µA in 2 MHz mode
§ 799 µA in 24 MHz mode
· Radio Consumption:
§ 6.4 mA RX
§ 21 mA TX at +10 dBm
§ 101 mA TX at +20 dBm
Wireless protocol support
· 6LoWPAN
· Proprietary systems
High performance radio
· -104 dBm for Bluetooth® Low Energy 125-kbps
· Output power up to +20 dBm with temperature compensation
Regulatory compliance
· Suitable for systems targeting compliance with these standards:
§ ETSI EN 300 328, EN 300 440 Cat. 2 and 3
§ FCC CFR47 Part 15
§ ARIB STD-T66
MCU peripherals
· Digital peripherals can be routed to any GPIO
· Four 32-bit or eight 16-bit general-purpose timers
· 12-bit ADC, 200 kSamples/s, 8 channels
· 8-bit DAC
· Two comparators
· Programmable current source
· Two UART, two SSI, I2C, I2S
· Real-time clock (RTC)
· Integrated temperature and battery monitor
Security enablers
· AES 128- and 256-bit cryptographic accelerator
· ECC and RSA public key hardware accelerator
· SHA2 Accelerator (full suite up to SHA-512)
· True random number generator (TRNG)
Development tools and software
· LP-CC1352P7 Development Kits
· SimpleLink™ CC13xx and CC26xx Software Development Kit (SDK)
· SmartRF™ Studio for simple radio configuration
· Sensor Controller Studio for building low-power sensing applications
· SysConfig system configuration tool
Operating range
· On-chip buck DC/DC converter
· 1.8-V to 3.8-V single supply voltage
· -40 to +105°C
Package
· 7-mm × 7-mm RGZ VQFN48 (26 GPIOs)
RoHS-compliant package
